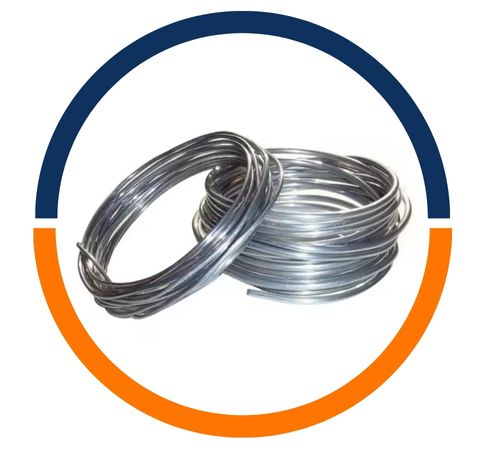

Based in Hamilton, New Zealand, Kiri Aluminium stands as a trusted local source for high-grade aluminium products, including their reliable Aluminium 5005 Wires. We pride ourselves on offering materials backed by expert knowledge and a commitment to supporting New Zealand’s industrial and creative sectors. These wires offer a fantastic balance of strength and workability, making them a go-to choice for a wide array of projects where dependable performance is essential. Our team is dedicated to supplying quality materials right here from the heart of the Waikato.
The composition of Aluminium 5005 is primarily aluminium with a small but important addition of magnesium, which significantly enhances its strength over pure aluminium without compromising its excellent corrosion resistance. This alloy is known for being moderately strong, highly ductile, and very weldable, making it exceptionally easy to work with. It can be readily formed and drawn into wire, holding its shape well while offering a good surface finish. This combination of properties makes it a very practical and versatile material for numerous applications.
Standards : ASTM B221, B211
Temper : H14
Diameter : 5.5 – 400 mm
Length : 10 – 10000 mtr
Form : Shaped, Flat, Square, Round, Fine Wire, Plated and Un-plated Wire, Continuous Coils, Cut to lengths, Precision cutting Etc
Treatment : Cold Forming, Heat Treatment, Stress Relieving and Welding
|
Element |
% |
Element |
% |
|
Aluminium |
Balance |
Manganese |
0.20 max |
|
Magnesium |
0.50 – 1.10 |
Chromium |
0.10 max |
|
Silicon |
0.30max |
Zinc |
0.25 max |
|
Iron |
0.07 max |
Others, each |
0.05 max |
|
Copper |
0.20 max |
Others, total |
0.15 max |
|
Temper |
0.2% Proof Stress, MPa min† |
Tensile Strength, MPa |
Elongation % min‡ |
|
O (annealed) |
35 |
105 – 145 |
12 – 22 |
|
H12 |
95 |
125 – 165 |
2 – 8 |
|
H14 |
115 |
145 – 185 |
1 – 6 |
|
H16 |
135 |
165 – 205 |
1 – 3 |
|
H18 |
– |
> 185 |
1 – 3 |
|
H32 |
85 |
115 – 160 |
3 – 9 |
|
H34 |
105 |
135 – 180 |
2 – 7 |
|
H36 |
125 |
160 – 200 |
1 – 4 |
|
H38 |
– |
> 180 |
1 – 4 |
Kiri Aluminium based in Hamilton, New Zealand is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5005 Wire to meet specific project needs. Our team at Kiri Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@kirialuminium.com
The uses for Aluminium 5005 wire are wonderfully diverse, finding roles in both industrial and everyday contexts. It’s commonly used in architectural applications like wiring for mesh or grilles, and in various forms of rivets and fasteners. You’ll also find it in kitchen utensils, fishing gear, and general fabrication projects where a combination of light weight, strength, and resistance to the elements is needed. Its excellent conductivity makes it suitable for some electrical applications, proving its versatility from sturdy construction components to detailed craftwork.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
