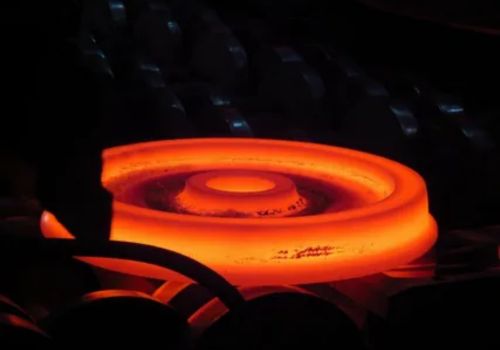

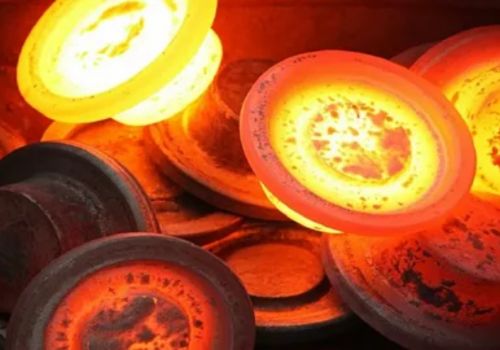

Kiri Aluminium, a reputable manufacturer and supplier located in Hamilton, New Zealand, specializes in high-purity Aluminium 1050 Forgings that are designed for precision, reliability, and exceptional corrosion resistance. Crafted using controlled forging techniques, these components boast remarkable electrical and thermal conductivity, along with a smooth, defect-free surface. Kiri Aluminium offers Aluminium 1050 Forgings in tailored shapes and sizes to cater to the needs of electrical systems, food-processing equipment, light engineering, and chemical-handling applications. With a strong commitment to quality and a customer-centric approach, the company guarantees that each forging delivers excellent dimensional accuracy, high purity, and reliable performance for low-stress and formability-based applications.
Aluminium 1050 Forgings are composed of at least 99.5% aluminium, making them one of the purest grades available. The presence of trace elements like iron, silicon, copper, and manganese provides slight strengthening without compromising ductility. Mechanically, this alloy has low tensile strength but offers very high elongation, which facilitates easy shaping during the forging process. It also showcases outstanding electrical and thermal conductivity, along with robust corrosion resistance. These features make Aluminium 1050 Forgings perfect for applications that demand lightweight, clean, highly workable, and non-reactive aluminium components.
Standards : ASTM B247, B247
Temper : H14
Specification : DIN, ASTM, BS and all International Standards
Flat bar blocks : up to 27″ width and 15,000 lbs.
Cylinders and sleeves : up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs : up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings : up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts : up to 144″ maximum length and 20,000 lbs.
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
Kiri Aluminium based in Hamilton, New Zealand is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 1050 Forgings to meet specific project needs. Our team at Kiri Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@kirialuminium.com
Aluminium 1050 Forgings find their place in various industries that require lightweight, easily formable, and corrosion-resistant parts. They are commonly used in electrical systems for conductive components, connectors, busbar elements, and termination fittings due to their excellent conductivity. In food-processing and chemical-handling equipment, their high purity and non-reactive properties make them ideal for hygienic, contamination-free components. In engineering, they are utilized for light-duty brackets and other applications where strength and weight are critical.
