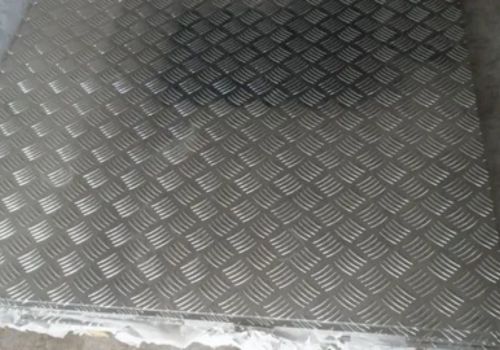

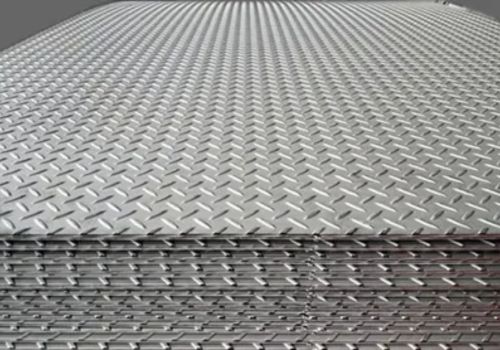

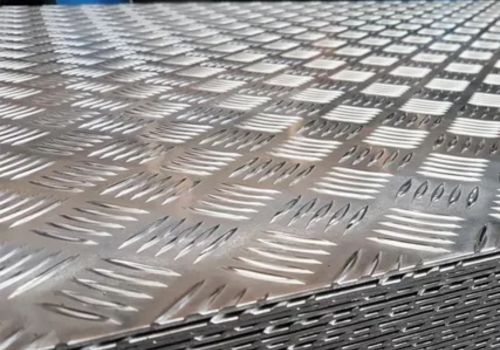

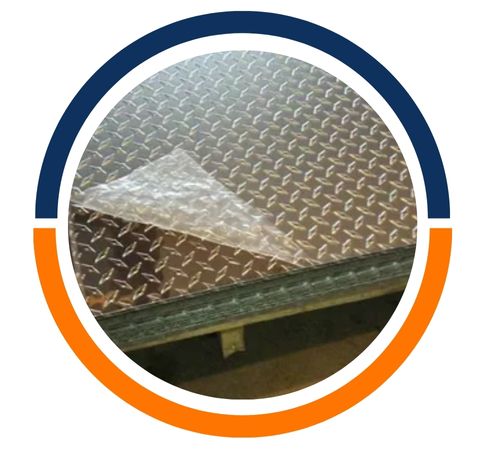

Kiri Aluminium, located in Hamilton, New Zealand, is a trusted manufacturer and supplier of top-notch Aluminium 1050 Chequered Plates. They provide high-purity aluminium solutions that are perfect for industries looking for lightweight, corrosion-resistant, and durable materials. Aluminium 1050 is well-known for its excellent formability, smooth finish, and reliable chemical stability, making it a great choice for anti-slip and protective surface applications. Kiri Aluminium guarantees that each chequered plate is crafted with precise dimensions, consistent raised patterns, and strict compliance with international standards. With strong quality control and modern production techniques, the company delivers cost-effective, high-performance chequered plates for industrial flooring, transport, architectural, and general fabrication needs.
Aluminium 1050 Chequered Plates are made up of 99.5% pure aluminium, with only trace amounts of elements like silicon, iron, copper, zinc, and manganese. This high-purity blend offers excellent electrical and thermal conductivity, natural corrosion resistance, and outstanding workability. Mechanically, Aluminium 1050 has low tensile strength, which can be improved through cold working processes. The alloy showcases high ductility, good elongation, and is easy to form and bend. Its stability in low-stress environments and resistance to atmospheric and chemical exposure make it perfect for applications that require lightweight, workable, and non-reactive chequered surfaces.
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24
Thickness : 0.2-50
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

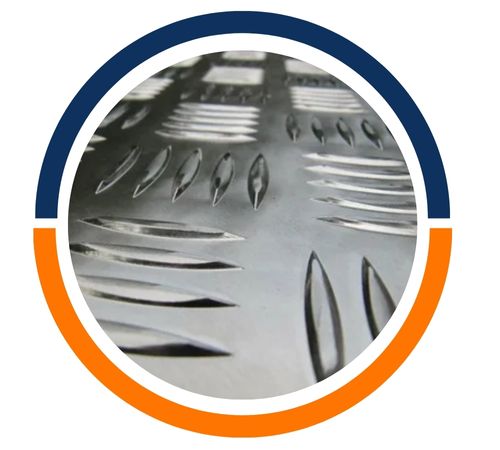

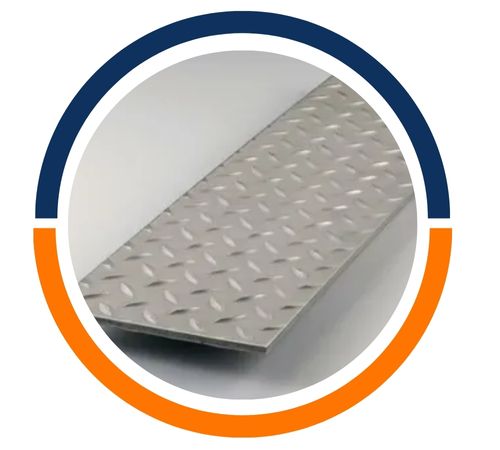

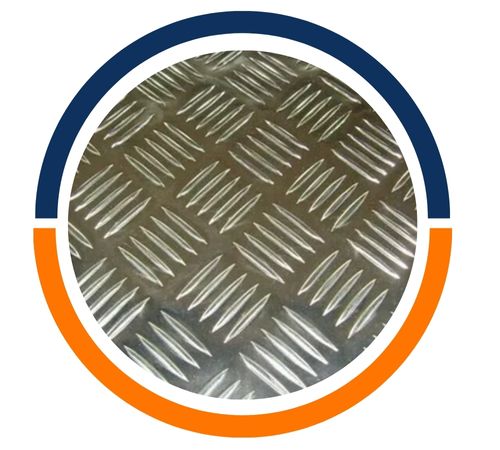

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
Kiri Aluminium based in Hamilton, New Zealand is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 1050 Chequered Plates to meet specific project needs. Our team at Kiri Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@kirialuminium.com
Aluminium 1050 Chequered Plates are commonly used for anti-slip flooring in industrial plants, warehouses, walkways, stair treads, ramps, mezzanines, and loading platforms, thanks to their raised diamond pattern that boosts grip and safety. In the transportation sector, they find their place in truck beds, bus flooring, cargo compartments, and railway interiors. Their corrosion resistance also makes them a great fit for flooring in the chemical and food industries.
